High Precision 5um Linear Scale Encoder 720mm (28") Travel Length - Digital Readout for Lathe & Milling Machines | DRO Tools for Accurate CNC Machining & Metalworking

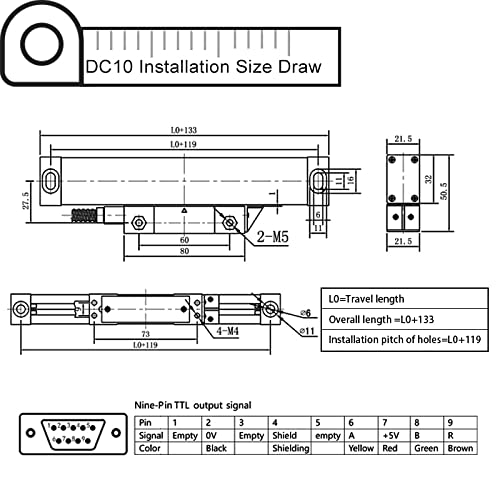

⭐ Technical date:● Resolution:5um (0.005mm),0.0002'' , (High resolution and accuracy can be customized) ● Signal:TTL (EIA-422-A can be customized) ● Grating pitch:0.02mm (50LP/min) ● Accuracy:±0.005 mm ● Speed:60m/min ● Cable length:3Meter ● Total length will be longer 5.23inch (133mm) than travel lengthEG:Choice travel length 320mm ,total length =travel length +133mm .so linear scale 's total length=320+133=453mm

IP55 Sealing Protection The slide carrier of the DC series linear scales uses a five bearing design. The optical grating linear transducer has been proven as the most reliable system design in today's market. The glass grating slideways are lapped, and JIS standard P5 grade bearings are used to achieve smooth and accurate movement and long working life.

Industrial Standard Output Signal Interface Only the industrial standard TTL digital signal output is available. Interface is the industry standard 9 pin DSUB9 connector.

100% Laser Calibration All linear scale are individually inspected and calibrated by RENISHAW laser calibrator to ensure 100% accuracy.
