Gekufa 110V Dental Vacuum Forming Machine with 15 Thermoforming Plastic Sheets (1.5mm) - Professional Dental Lab Equipment for Crowns, Dentures & Mouth Guards

How to use 1. Put the plaster model on the tray.Use steel balls to bury the part that do not need to be formed 2. Set up the PVC film.Raise the PVC film clamp to working height 3. Turn on the heater by using heating button.Waiting for the film become soften. 4. When the PVC film becomes soft enough (usually it will sag 1 to 2cm),press down the lifting rod to cover the heated soften PVC film over the plaster model. 5. Turn off the heater.Press down the molding button and wait for 10 to 15 seconds.Molding finish. 6. After the film cooling down,use a scissor to remove the excess part. Specifications Voltage: 110V/60Hz ± 10% Power: 600W Dimensions: 25 × 21 × 30cm(9.8 × 8.3 × 11.8 inch). Forming size:126*126mm(5 x 5 inch) Weight: 6kg Package included： 1 x Vacuum forming machine 1 x Bag of steel grits 15 x 1.5mm thermoforming sheets 1 x Manual

Compatible with all dental thermoplastics and can be applied for making night guards, custom trays, base plates, temporary splints, bruxism splints, and copings.

Solid steel rust-resistant body with rugged painted finish protection.Has a built in vacuum pump and doesn’t need an extra compressor.

Symmetrical heating element, ensuring uniform heat distribution.Low noise in operation.

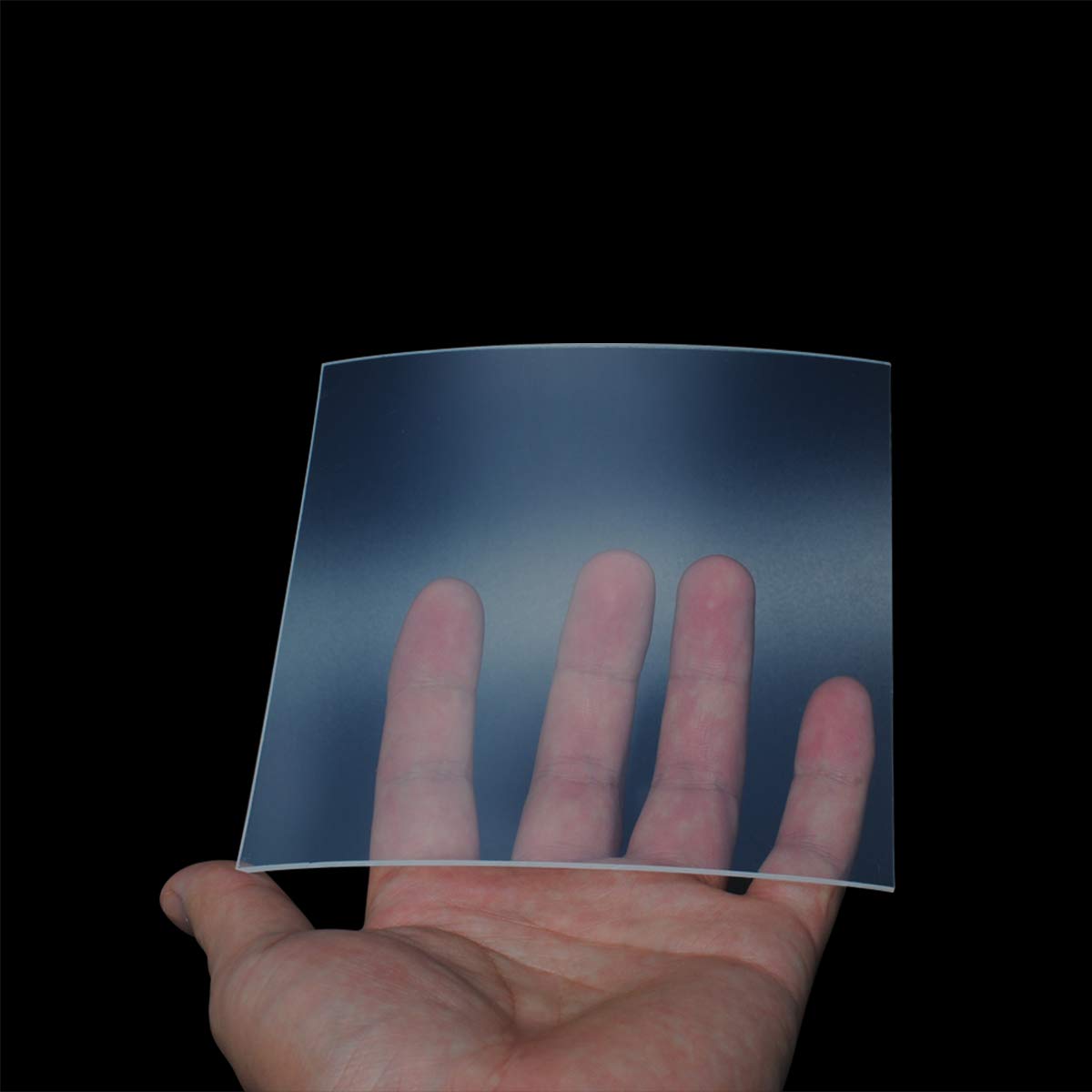

Comes with 15 pcs 1.5mm thermoforming sheets,which has excellent wear resistance and stability.Not easy to dye, yellowing and aging.Remove the protective film on both sides before using.

Largest object size that can be placed on the platform is 5" x 5".The forming depth is about 2".Can work with both square plates or round plates.For any reason you're not completely satisfied, please feel free to contact us.
