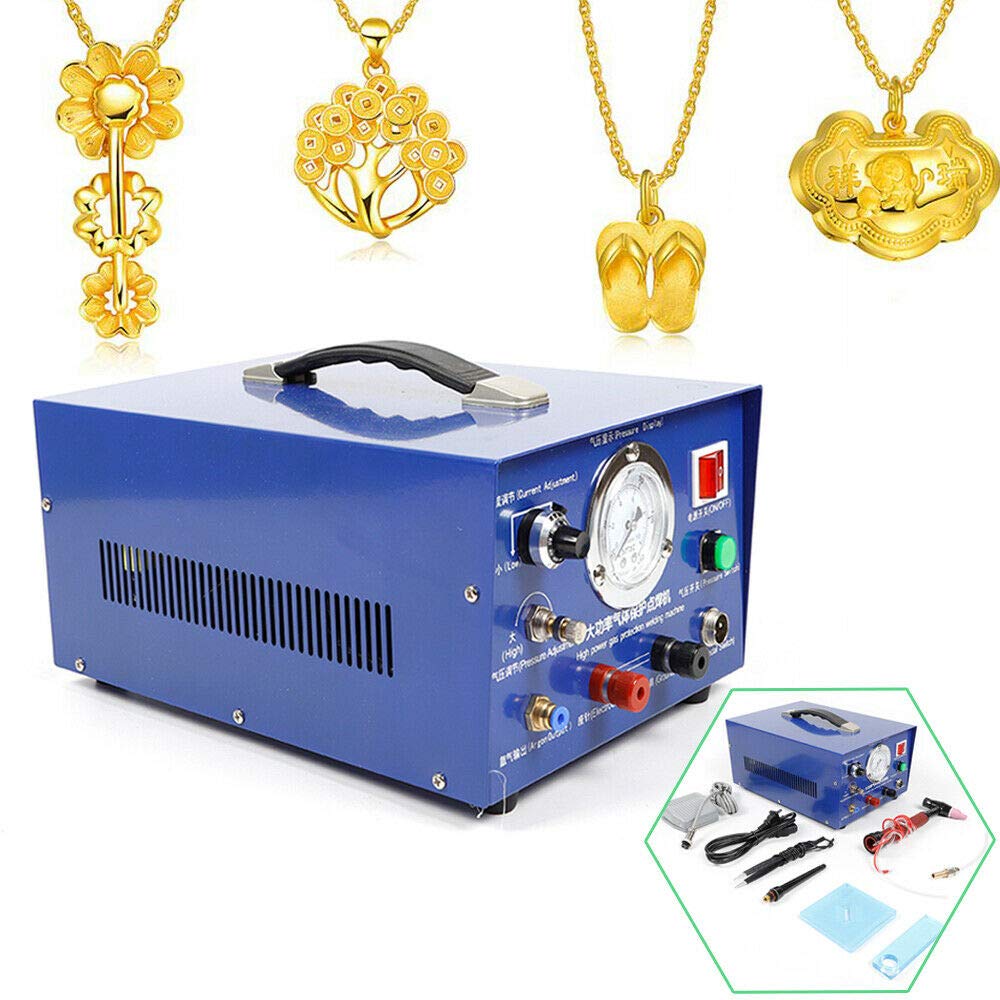

Gdrasuya10 Jewelry Pulse Welding Machine - Adjustable 80A 800W Argon Pulse Spot Welder for DIY Jewelry Making & Metal Crafting | Perfect for Rings, Chains, and Small Metal Repairs

Specification:Power supply: AC110VPower: 800WWelding current: 0.5-80A continuously adjustable (pulse ignition)Use range:All precious metal, precious metal alloy materials, such as gold, silver, platinum, palladium, stainless steel, titanium, all of which are weak arc welding metals can be welded.Instructions:1. Before using the welder, first check if the power supply meets the operating voltage.2. Connect the welder output wire to the screw of the corresponding output stage (tighten the nut when the output wire is connected to the output pole)3. When working, clamp the workpiece with the clip on the output black line, close to the tungsten needle (depending on the size and shape of the workpiece, generally the distance between the tungsten needle and the workpiece is between 0.5-1 mm). After the welding position is fixed, Jog the footswitch, and a high-temperature arc between the workpiece and the tungsten needle instantly welds the workpiece.4. The discharge end of the tungsten needle must be kept sharp before use and during use to maintain a good discharge state.5. Welding can change the output pulse current according to the size of the workpiece, the size of the solder joints, and the process requirements (the machine can weld 0.5-1.5MM). When the potentiometer is rotated clockwise, the output pulse current increases, whereas the output pulse current decreases.Standard accessories:One hostpower cableFootswitchWorkpiece clipTungsten needleTorch needle holderInstruction manual

【Pulse Current】Welding can change the output pulse current according to the size of the workpiece, the size of the solder joints, and the process requirements (the machine can weld 0.5-1.5MM).

【Good Discharge State】The discharge end of the tungsten needle must be kept sharp before use and during use to maintain a good discharge state.

【Notice】If the place where the welder is placed is wet or not used for a long time, it will be damp. If it is found that the above phenomenon should be dried before use, the machine should be well-grounded. Please pay attention to safety when using it.

【Wide Application】All precious metal, precious metal alloy materials, such as gold, silver, platinum, palladium, stainless steel, titanium, all of which are weak arc welding metals can be welded.

【Service】If you have any questions, please feel free to contact us and we will reply you within 24 hours.
